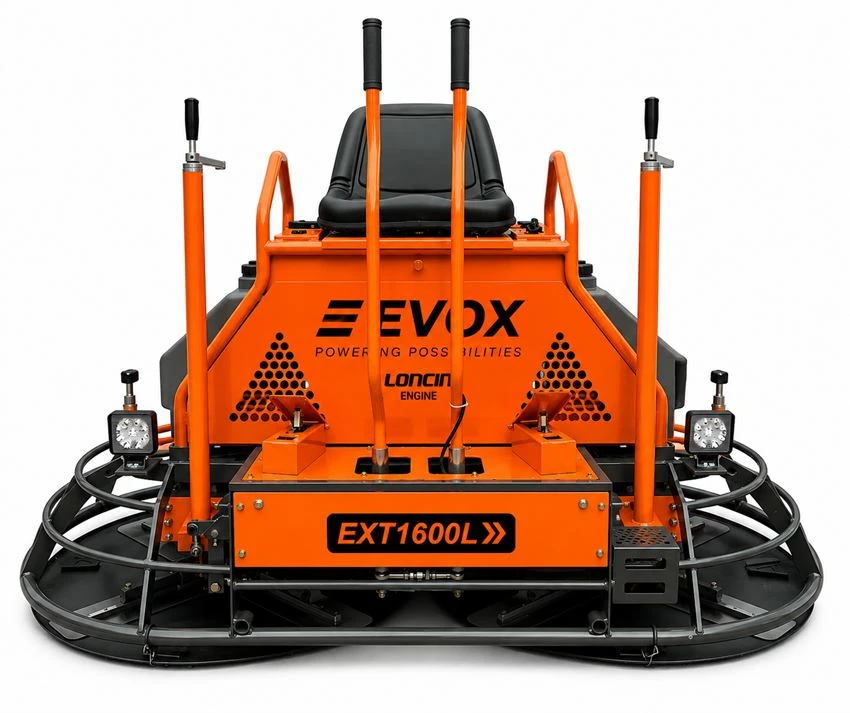

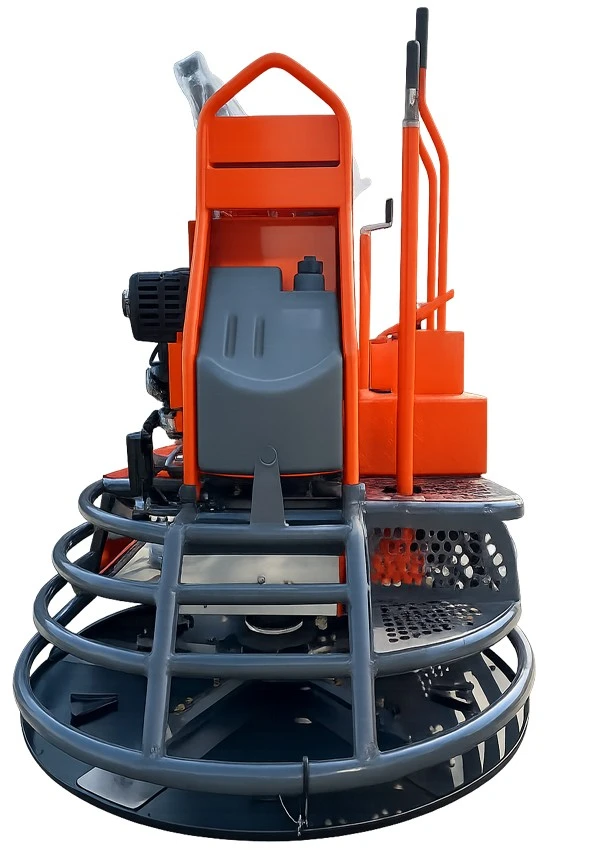

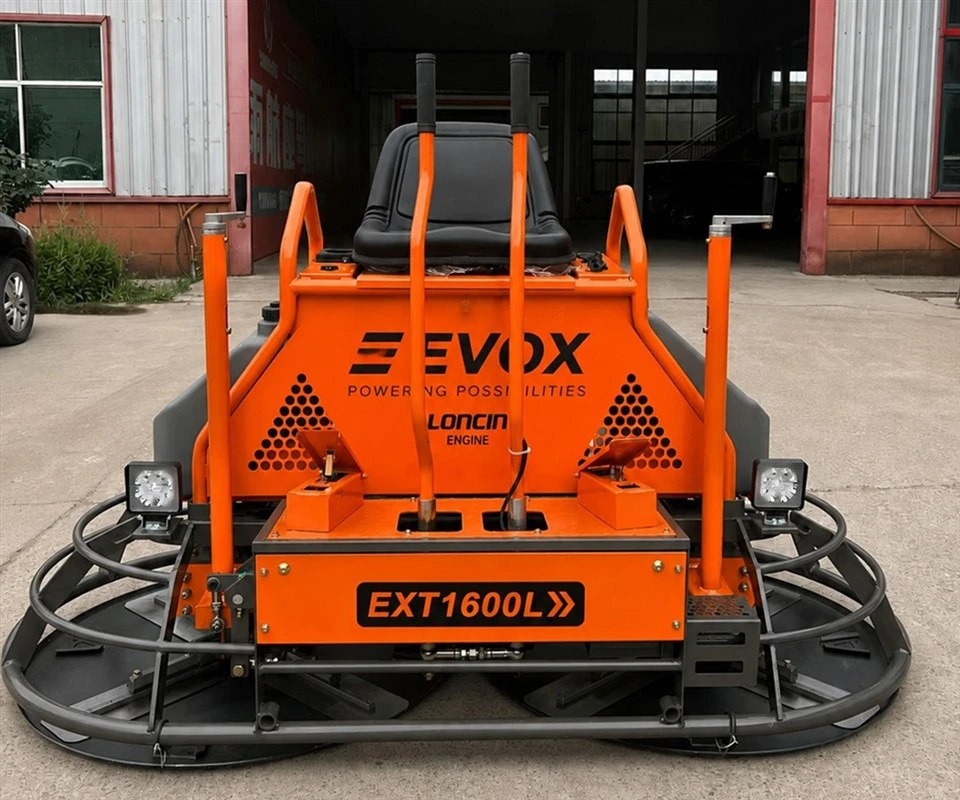

EVOX EXT1600L Ride-on Power Trowel
Product Introduction
The EVOX EXT1600L 1600mm Ride-On Power Trowel is designed for contractors who need a compact ride-on machine capable of delivering professional concrete finishing results without sacrificing maneuverability. Combining a practical machine footprint with dependable performance, it is particularly suited to projects where larger ride-on trowels are less efficient.
Powered by the Loncin 420cc 15HP gasoline engine as standard, the EXT1600L provides reliable power for daily construction work while keeping maintenance simple and operating costs low. Customers can also choose Honda GX390 or RATO R420 engines to match local market preferences or fleet requirements.
Featuring twin Ø780 mm rotors, a 1600 mm working width, and a mechanical steering system, the EXT1600L offers smooth handling and consistent finishing performance for commercial flooring, warehouse construction, workshops, and residential developments.
Product Parameters
|
Item |
Specification |
|
Model |
EVOX EXT1600L |
|
Machine Type |
Ride-on Power Trowel |
|
Working Width |
1600 mm |
|
Rotor Diameter |
2 × Ø780 mm |
|
Blade System |
QUADRO Blade |
|
Blades |
4 per Rotor |
|
Blade Pitch |
Adjustable (0°–15°) |
|
Steering System |
Mechanical Steering |
|
Standard Engine |
Loncin 420cc, 15HP |
|
Optional Engine |
Honda GX390 / RATO R420 |
|
Engine Type |
Air-cooled, Single-cylinder, 4-Stroke Gasoline Engine |
|
Starting System |
Electric Start |
|
Instrument Panel |
Hour Meter & Battery Voltage Display |
Specifications are subject to continuous product improvement without prior notice.
Product Features & Applications
Key Features
Unlike larger ride-on models that focus primarily on maximum coverage, the EXT1600L is engineered for projects where flexibility and precise control are equally important.
Standard Loncin 420cc 15HP gasoline engine.
Optional Honda GX390 and RATO R420 engine configurations.
Twin Ø780 mm rotors provide efficient finishing without excessive machine size.
Compact chassis improves maneuverability around columns, walls and confined working areas.
Mechanical steering offers direct operator control with a simple and durable structure.
Adjustable blade angle allows quick transition from floating to finishing.
Integrated hour meter simplifies routine maintenance scheduling.
Battery voltage display helps monitor the electrical system.
Mechanical throttle lock reduces operator fatigue during continuous operation.
Floating pans included for early-stage concrete finishing.
Typical Applications
The EVOX EXT1600L performs exceptionally well in projects where both finishing quality and machine accessibility are essential, including:
Residential developments
Commercial buildings
Small warehouses
Factory workshops
Underground parking areas
Concrete repair projects
Pavement construction
Building extensions
Municipal maintenance
Rental equipment fleets
Product Details
Compact size doesn't mean reduced capability.
The EVOX EXT1600L has been developed to bridge the gap between traditional walk-behind trowels and larger ride-on machines. Its compact dimensions allow operators to work efficiently in areas where larger equipment becomes difficult to maneuver, while still benefiting from the comfort and productivity of a ride-on design.
The twin rotor configuration delivers uniform finishing performance across fresh concrete surfaces. Blade pitch adjustment from 0° to 15° enables operators to adapt the machine throughout different stages of concrete curing, reducing the need for additional equipment.
Maintenance is straightforward thanks to the machine's practical layout. Daily inspection points are easy to access, and the hour meter together with the battery voltage display helps operators keep track of service intervals, reducing downtime and extending machine life.
Product Qualification
Every EVOX EXT1600L is manufactured using carefully selected components and undergoes multiple quality inspections before leaving the factory.
Each unit is tested for engine operation, steering performance, blade adjustment, vibration, and overall assembly quality to ensure dependable performance under professional working conditions.
Available documentation includes:
- CE Certificate
- Factory Inspection Report
- User Manual
- Spare Parts Catalogue
- OEM Technical Documentation
Delivery, Shipping & Service
EVOX works closely with construction equipment distributors, rental companies, and OEM partners around the world.
Our export team provides flexible manufacturing solutions tailored to different market requirements, including customized branding, multilingual manuals, private-label production, and export packaging.
Our services include:
- OEM & ODM Manufacturing
- Custom Colors & Logos
- Private Label Production
- Export Carton Design
- Spare Parts Support
- Technical Documentation
- Worldwide Shipping
- Professional After-sales Service
Whether supplying individual machines or full container orders, EVOX is committed to providing responsive service and reliable delivery.
Frequently Asked Questions
Q: What type of projects is the EXT1600L best suited for?
A: The EXT1600L is ideal for medium-sized concrete finishing projects where maneuverability is important, such as commercial buildings, workshops, residential developments, and parking structures.
Q: Which engine is installed as standard?
A: The standard configuration uses the Loncin 420cc 15HP gasoline engine.
Q: Can I choose another engine?
A: Yes. Honda GX390 and RATO R420 engines are available as optional configurations.
Q: Is the EXT1600L suitable for rental businesses?
A: Yes. Its compact size, simple mechanical steering system, and easy maintenance make it an excellent choice for equipment rental fleets.
Q: Does EVOX provide OEM manufacturing?
A: Yes. EVOX supports OEM and ODM projects, including customized branding, product colors, decals, packaging, manuals, and technical documentation.
