EV50DCI Diesel Cast Iron Water Pump
Heavy-Duty 2 Inch Cast Iron Diesel Water Pump for Reliable Water Transfer
Product Introduction

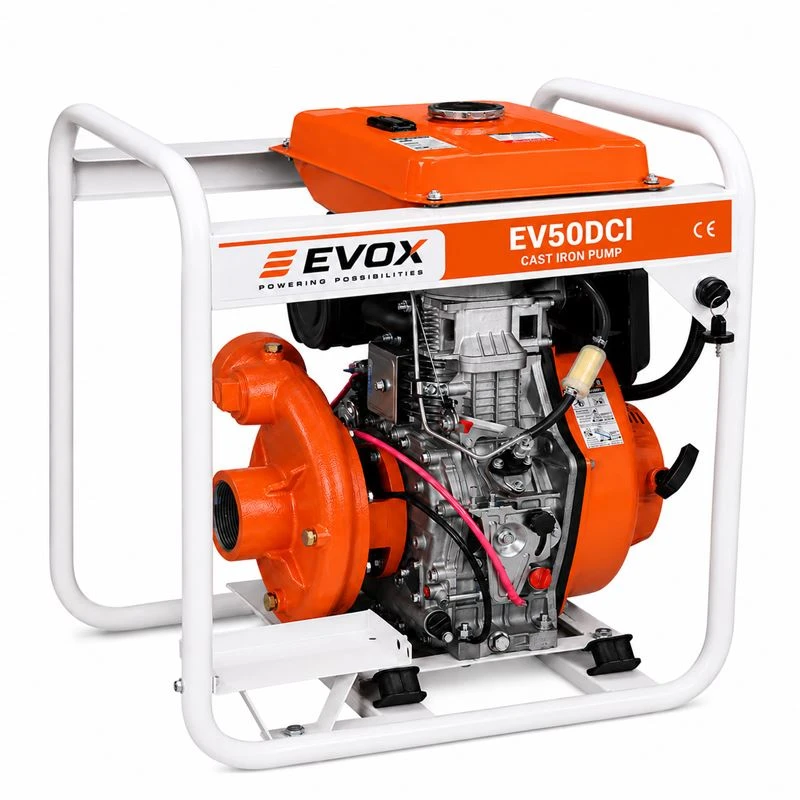

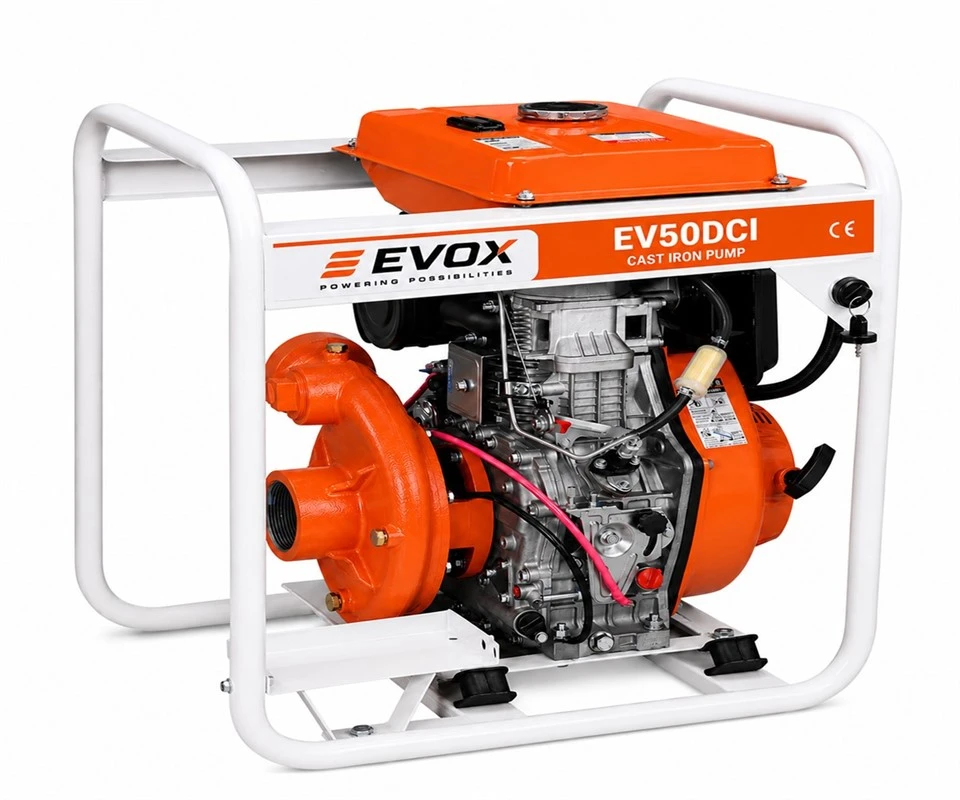

The EVOX EV50DCI 2 inch Cast Iron Diesel Water Pump is engineered for users who require dependable pumping performance, robust construction, and long service life in demanding working environments. Powered by the reliable EVOX EV178F single-cylinder air-cooled diesel engine, the EV50DCI combines efficient water transfer with a heavy-duty cast iron pump body to deliver consistent performance for agricultural, construction, and general water handling applications.
Featuring 2-inch inlet and outlet ports, the EV50DCI delivers a maximum flow rate of 27m³/h, a maximum head of 68 meters, and a maximum suction height of 7 meters. The durable cast iron pump housing improves wear resistance and mechanical strength, making the pump suitable for continuous operation under challenging field conditions.
Designed for global OEM and ODM customers, the EV50DCI supports customized branding, product colors, packaging, and multilingual documentation, providing distributors with a durable diesel water pump platform for international markets.
Product Parameters
|
Item |
Specification |
|
Model |
EV50DCI |
|
Product Type |
Diesel Cast Iron Water Pump |
|
Engine Model |
EV178F |
|
Engine Type |
Single-Cylinder, 4-Stroke, Air-Cooled Diesel Engine |
|
Engine Displacement |
296cc |
|
Pump Diameter |
2 inch (50mm) |
|
Maximum Flow |
27m³/h |
|
Maximum Head |
68m |
|
Maximum Suction |
7m |
|
Fuel Tank Capacity |
3.5L |
|
Continuous Running Time |
2 Hours |
|
Starting System |
Recoil Start / Electric Start (Optional) |
|
Pump Housing |
Heavy-Duty Cast Iron |
|
Net / Gross Weight |
52 / 57kg |
|
Product Dimension |
570 × 450 × 550mm |
|
Package Size |
580 × 460 × 570mm |
Product Highlights
EVOX EV178F 296cc diesel engine
Heavy-duty cast iron pump housing
Maximum head up to 68m
Maximum flow 27m³/h
Maximum suction 7m
Manual or electric start available
Reinforced steel frame
OEM & ODM customization supported
Product Features & Applications
Heavy-Duty Cast Iron Pump Construction
The cast iron pump body provides outstanding mechanical strength and improved wear resistance, helping extend service life under demanding operating conditions.
01
Reliable Diesel Engine Performance
Powered by the EVOX EV178F diesel engine, the EV50DCI delivers stable power output, dependable starting performance, and excellent fuel efficiency for daily operation.
02
Stable Water Transfer Performance
The optimized hydraulic design provides efficient water transfer with dependable flow and head performance, making the pump suitable for a wide range of water handling applications.
03
Rugged Steel Frame Protection
A reinforced tubular steel frame protects the engine and pump assembly during transportation and field operation while improving overall durability.
04
OEM Manufacturing Flexibility
EVOX offers comprehensive OEM and ODM services including private branding, customized colors, packaging, manuals, and market-specific product configurations.
05
Typical Applications
The EV50DCI is suitable for:
- Agricultural operations
- Irrigation systems
- Farm water supply
- Construction sites
- Municipal maintenance
- Water transfer
- Water supply projects
- Equipment rental
- Landscape maintenance
- General field operations
Product Details
EVOX EV178F Diesel Engine
The proven 296cc diesel engine delivers reliable power with low fuel consumption and dependable performance for everyday pumping applications.
01
Heavy-Duty Cast Iron Pump Housing
The robust cast iron construction improves durability, wear resistance, and structural strength, helping the pump perform reliably in demanding environments.
02
Reinforced Steel Frame
The heavy-duty frame protects the engine and pump assembly while allowing convenient transportation and handling.
03
Reliable Mechanical Seal
Quality sealing components help reduce leakage and improve long-term operating reliability.
04
Easy Maintenance Layout
The practical design provides convenient access for routine inspection and maintenance, helping reduce downtime.
05
Product Qualification
Every EV50DCI is manufactured under the EVOX ISO9001-certified quality management system.
Each unit undergoes comprehensive inspection before shipment, including:
- Engine performance testing
- Pump flow verification
- Maximum head testing
- Suction performance inspection
- Leakage testing
- Functional testing
- Final quality inspection
Inspection reports and export documentation are available upon request.
Delivery, Shipping & Service
EVOX provides professional OEM and ODM manufacturing services for distributors and equipment brands worldwide.
Our services include:
- OEM manufacturing
- Private label branding
- Product color customization
- Packaging design
- User manual localization
- Spare parts supply
- Technical documentation
- Engineering support
- Global after-sales service
Flexible production scheduling is available for both standard models and customized OEM projects.
Frequently Asked Questions
Q: What is the advantage of the cast iron pump housing?
A: The heavy-duty cast iron construction provides improved wear resistance, higher mechanical strength, and enhanced durability compared with conventional lightweight pump housings.
Q: Does the EV50DCI support electric start?
A: Yes. Both recoil start and optional electric start versions are available to meet different customer requirements.
Q: Can the pump be customized?
A: Yes. EVOX supports OEM and ODM services including customized branding, product colors, packaging, manuals, and technical specifications.
Q: What industries commonly use the EV50DCI?
A: The EV50DCI is widely used in agriculture, construction, municipal maintenance, water transfer, equipment rental, and other professional pumping applications.
Q: Is technical support available?
A: Yes. EVOX provides spare parts, technical documentation, engineering assistance, and comprehensive after-sales support for global distributors and OEM customers.
