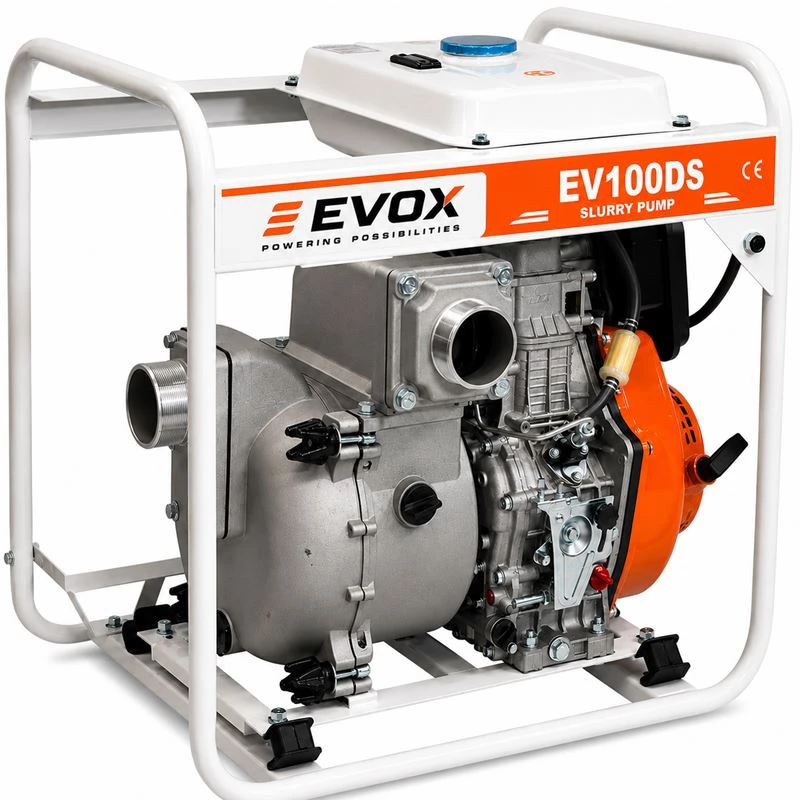

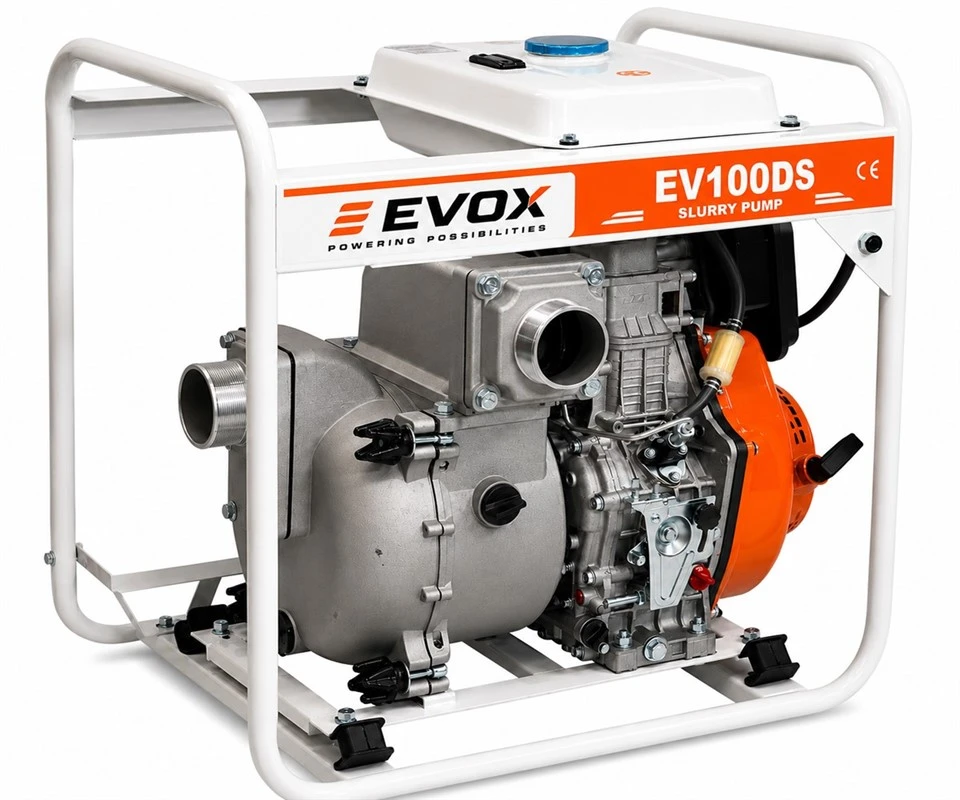

EV100DS Diesel Slurry Pump
Heavy-Duty 4 Inch Diesel Slurry Pump for High-Volume Mud, Sludge and Wastewater Transfer
Product Introduction
The EVOX EV100DS 4 Inch diesel self-priming slurry pump is engineered for high-capacity pumping applications involving mud, slurry, wastewater, and liquids containing suspended solids. Designed for demanding construction, mining, agricultural, and emergency drainage projects, the EV100DS combines powerful diesel performance with a heavy-duty slurry pump to deliver reliable operation under harsh working conditions.
Equipped with 4-inch inlet and outlet ports, the EV100DS provides a maximum flow rate of 105m³/h, a maximum head of 30 meters, and a maximum suction height of 7 meters. Its optimized open-impeller design allows solids of up to 25mm (1 inch) to pass through the pump efficiently, helping reduce blockages and improve productivity when handling abrasive materials.
Built with a reinforced steel frame, wear-resistant pump casing, and dependable diesel engine, the EV100DS is designed for continuous field operation and extended service life. EVOX also provides comprehensive OEM and ODM manufacturing services, including customized branding, packaging, product colors, multilingual manuals, and market-specific configurations for distributors worldwide.
Product Parameters
|
Item |
Specification |
|
Model |
EV100DS |
|
Product Type |
Diesel Slurry Pump |
|
Engine Model |
EV192F |
|
Engine Type |
Single-Cylinder, 4-Stroke, Air-Cooled Direct Injection Diesel Engine |
|
Engine Displacement |
499cc |
|
Pump Diameter |
4 inch (100mm) |
|
Maximum Flow |
105m³/h |
|
Maximum Head |
30m |
|
Maximum Suction |
7m |
|
Maximum Solid Passage |
25mm (1 inch) |
|
Self-Priming Time |
40s / 4m |
|
Fuel Tank Capacity |
5.5L |
|
Continuous Running Time |
2 Hours |
|
Starting System |
Recoil Start / Electric Start (Optional) |
|
Pump Type |
Heavy-Duty Slurry Pump |
|
Frame Type |
Reinforced Steel Frame |
Product Highlights
EVOX EV192F 499cc diesel engine
Heavy-duty slurry pump construction
Maximum flow up to 105m³/h
Maximum head 30m
Maximum suction height 7m
Handles solids up to 25mm
Recoil or optional electric start
OEM & ODM customization available
Product Features & Applications
High-Volume Slurry Transfer
The EV100DS is designed for demanding pumping jobs that require exceptional flow capacity. Its 4-inch pump efficiently transfers large volumes of slurry, muddy water, sludge, and wastewater while maintaining stable operating performance.
01
Excellent Solids Handling Capability
The open impeller design allows suspended solids up to 25mm (1 inch) to pass through the pump, reducing clogging and improving reliability when pumping dirty water containing sand, gravel, leaves, and debris.
02
Powerful Diesel Engine
Powered by the EVOX EV192F direct-injection diesel engine, the EV100DS delivers strong torque, dependable starting, and excellent fuel efficiency for continuous outdoor operation.
03
Rugged Heavy-Duty Construction
The reinforced steel frame protects the pump and engine against impact during transportation and field operation, while the wear-resistant pump body improves durability in abrasive working environments.
04
Flexible OEM & ODM Solutions
EVOX supports private-label manufacturing and customized product development, including logos, colors, packaging, multilingual manuals, and market-specific product configurations.
05
Typical Applications
- Construction site dewatering
- Mud and slurry transfer
- Mining operations
- Quarry drainage
- Flood emergency pumping
- Industrial wastewater transfer
- Agricultural drainage
- Irrigation canal cleaning
- Pond and reservoir maintenance
- Municipal drainage projects
Product Details
High-Performance Diesel Engine
The reliable diesel engine provides stable power output, strong torque, and economical fuel consumption, ensuring dependable pumping performance throughout long working hours.
01
Heavy-Duty Slurry Pump Assembly
Designed specifically for abrasive applications, the pump housing and impeller provide outstanding durability while maintaining efficient slurry transfer under demanding operating conditions.
02
Open Non-Clog Impeller
The specially engineered impeller improves solids handling performance by allowing larger particles to pass through the pump, minimizing downtime caused by clogging.
03
Reinforced Steel Protection Frame
The heavy-duty tubular frame protects critical components while making the pump easier to transport and position at construction sites, mines, and agricultural projects.
04
Convenient Maintenance Design
Routine inspection and servicing are simplified through an accessible equipment layout, helping reduce maintenance time and improve equipment availability.
05
Product Qualification
Every EVOX EV100DS Diesel Slurry Pump is manufactured under an ISO9001-certified quality management system to ensure consistent product quality and dependable field performance.
Each unit undergoes comprehensive testing before shipment, including:
- Diesel engine performance testing
- Slurry pumping performance verification
- Maximum flow testing
- Suction performance inspection
- Solids handling verification
- Leakage inspection
- Functional operation testing
- Final quality inspection
Inspection reports and export documentation are available upon request.
Delivery, Shipping & Service
EVOX provides complete OEM and ODM manufacturing services for distributors, equipment brands, rental companies, and industrial customers worldwide.
Our services include:
- OEM manufacturing
- Private-label branding
- Product color customization
- Packaging development
- User manual localization
- Spare parts support
- Technical documentation
- Engineering consultation
- Global after-sales service
Flexible production scheduling is available for both standard products and customized OEM projects.
Frequently Asked Questions
Q: What materials can the EV100DS pump?
A: The EV100DS is designed for transferring slurry, muddy water, sludge, wastewater, and liquids containing suspended solids up to 25mm (1 inch). It is suitable for demanding pumping applications where standard clean water pumps are not sufficient.
Q: What is the maximum pumping capacity?
A: The EV100DS delivers a maximum flow rate of 105m³/h, a maximum head of 30 meters, and a maximum suction height of 7 meters, making it suitable for high-volume pumping projects.
Q: Does the pump support electric start?
A: Yes. Customers can choose either the standard recoil starting system or the optional electric start configuration according to application requirements.
Q: Is OEM customization available?
A: Yes. EVOX provides comprehensive OEM and ODM services, including customized branding, product colors, packaging, manuals, and market-specific product specifications.
Q: Which industries commonly use the EV100DS?
A: The EV100DS is widely used in construction, mining, quarry operations, agriculture, flood control, municipal drainage, wastewater management, and industrial pumping applications.
Q: Does EVOX provide technical support?
A: Yes. EVOX supplies technical documentation, engineering assistance, spare parts, and professional after-sales service for customers and distributors worldwide.
